二、簡易裝配機設備性能特點Simple assembly machine equipment performance characteristics：

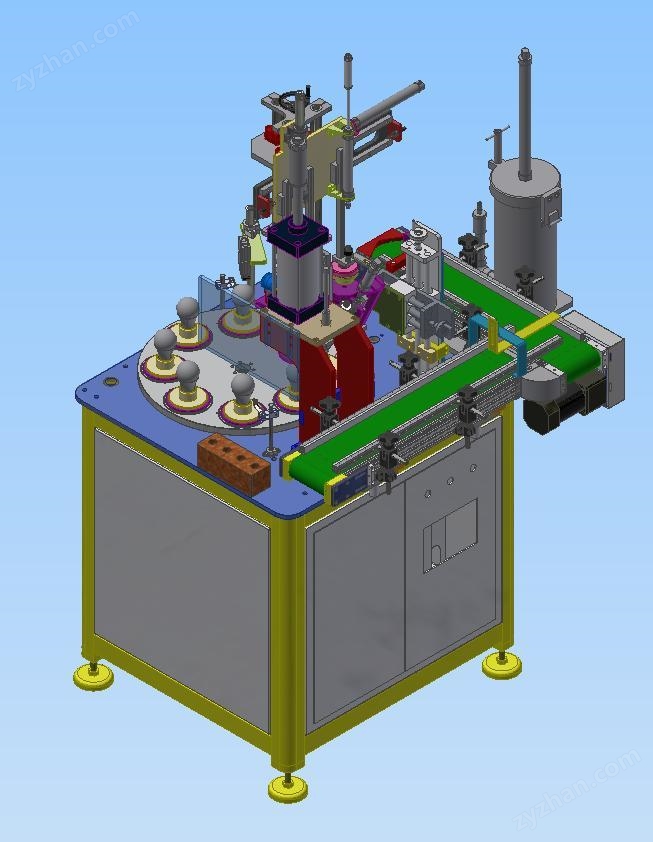

該簡易裝配機是我公司根據照明電器行業產品進行特殊研發制造定制的產品，應用范圍LED球泡半自動裝配成品等，其優點：高效率、省人工。This simple assembly machine is a customized product specially developed and manufactured by our company according to the products in the lighting and electrical industry. It is used in semi-automatic assembly of LED bulbs. Its advantages are: high efficiency and labor saving.
◆該機可以單獨使用，激光打標機設備連動使用，形成成套生產線。
The machine can be used alone, and the laser marking machine equipment can be used in conjunction to form a complete production line.
◆該機可根據用戶的不同使用要求，每種規格配一套模具，模具會根據產品高度來定制，大盤上的機構調節及調試簡便。如圖：The machine can be equipped with a set of molds for each specification according to the different requirements of users. The molds will be customized according to the height of the product. The mechanism on the large plate is easy to adjust and debug. As shown in the figure:
三、主要設備技術參數Main equipment technical parameters
3.1簡易裝配機技術參數Simple assembly machine technical parameters：
| 序號No | 設備機型Equipment model | RY-Simple-P1 | 備注Remark |
| 1 | 設備速度device speed | 1000-1200個/小時 1000-1200/hour | 標準機型 |
| 2 | 球泡尺寸Bulb size | φ50-100 |
|
| 3 | 電機功率Motor Power | 0.5 KW |
|
| 4 | 電源類型Power Type | 單相220V 50Hz |
|
| 5 | 機器噪音machine noise | ≤80dB |
|
| 6 | 氣 源Gas source | 0.5-0.8 Mpa |
|
| 7 | 耗 氣 量Air consumption | 20m³/h |
|
| 8 | 外形尺寸Dimensions | L1275*W1180*H1760mm |
|
| 9 | 整機重量Total Weight | 大約100Kg |
|
（最終解釋權歸榮裕所有）(The final interpretation right belongs to Rongyu)
3.2、簡易裝配機配置信息Simple assembly machine configuration information：
| 序號No | 名稱name | 品牌brand | 備注Remark |
| 1 | PLC | 臺達Delta |
|
| 2 | 人機界面HMI | 臺達Delta |
|
| 3 | 變頻器Inverter | 臺達Delta |
|
| 4 | 電磁閥The electromagnetic valve | 亞德客AirTAC |
|
| 5 | 氣缸cylinder | 亞德客AirTAC |
|
| 6 | 電機motor | 臺邦Taibang |
|
| 7 | 分割器cutting machine | 科威Coway |
|
四、球泡材料工藝要求Ball bubble material process requirements：
①LED裝配機的塑包鋁和泡殼配合不能有方向槽；且不能為全卡（如下圖）
The plastic-coated aluminum and the bubble shell of the LED assembly machine cannot have a directional positioning card slot; and cannot be a full card (as shown below)
②塑包鋁材料要求在符合壓針深度（扭力）的要求下不會產生裂紋；
The plastic-clad aluminum material requires that no cracks will occur under the requirements of the depth (torque) of the indentation needle;
